How-To Download Data From AWS S3 Using Rclone Parallel Streams

Introduction

You have a dataset in AWS S3 and would like to download it to Crusoe Infrastructure for training purposes.

Prerequisites

Kubernetes API access
Kubeconfig
AWS Credentials
Crusoe Shared Disk
Python

Summary

The script provided below performs the following functions:

Creates a generic Kubernetes secret to store AWS credentials.
Lists all the files from the AWS S3 bucket/path assigned to the S3_BUCKET variable
Depending on the list of files and the total size, the manifest will be split and distributed into multiple parts
The split manifest files are then copied over to the shared disk, so each worker can access the files from the disk
Each rclone worker will pick one manifest file and start downloading the files mentioned in the manifest

Step-by-Step Instructions

Export the AWS access and secret key as a variable

export AWS_ACCESS_KEY_ID=
export AWS_SECRET_ACCESS_KEY=

Create a Crusoe Shared Disk to be used for downloading the data.

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: sharedfs-mount
spec:
  accessModes:
    - ReadWriteMany
  storageClassName: crusoe-csi-driver-fs-sc
  resources:
    requests:
      storage: 1000Ti
  volumeMode: Filesystem

Modify the following python script to set the necessary variables and save it as rclone-download.py

import boto3
import subprocess
import os
import json
import time
import logging
from botocore.exceptions import ClientError

# Configure logging
logging.basicConfig(level=logging.INFO, format='%(asctime)s - %(levelname)s - %(message)s')

## CONFIGURATION ##
AWS_ACCESS_KEY_ID = os.getenv('AWS_ACCESS_KEY_ID')
AWS_SECRET_ACCESS_KEY = os.getenv('AWS_SECRET_ACCESS_KEY')

NUM_PODS = 8 # Decides number of parallel workstreams
SECRET_NAME = "aws-credentials" # Name of the K8s secret
PVC_NAME = "sharedfs-mount" # Name of the shared disk to be mounted
S3_BUCKET = "crusoe-solutions-engineering/c4-dataset/en" # AWS bucket/path
MASTER_POD_NAME = "rclone-master" # Name of the master pod
MANIFEST_DIR = "/manifests" # Mount path to save manifest file on shared disks
INSTANCE_CLASS = "s1a" # Type of instance to use for scheduling rclone workers

## Create the K8s secret ##
def create_k8s_secret():

    logging.info(f"Creating or updating Kubernetes secret '{SECRET_NAME}'...")
    cmd = [
        "kubectl", "create", "secret", "generic", SECRET_NAME,
        f"--from-literal=AWS_ACCESS_KEY_ID={AWS_ACCESS_KEY_ID}",
        f"--from-literal=AWS_SECRET_ACCESS_KEY={AWS_SECRET_ACCESS_KEY}",
        "--dry-run=client", "-o", "yaml"
    ]
    proc = subprocess.run(cmd, capture_output=True, check=True)
    subprocess.run(["kubectl", "apply", "-f", "-"], input=proc.stdout, check=True)
    logging.info("Kubernetes secret created or updated.")

## List the files in your AWS S3 bucket/path and save it as a manifest ##
## Manifest file has the list of all files and their size from the defined bucket ##
def list_s3_files(bucket_name, prefix=''):
    logging.info(f"Listing files in S3 bucket {bucket_name}, prefix: {prefix}...")
    try:
        session = boto3.Session(
            aws_access_key_id=AWS_ACCESS_KEY_ID,
            aws_secret_access_key=AWS_SECRET_ACCESS_KEY
        )
        s3 = session.client('s3')
        paginator = s3.get_paginator('list_objects_v2')
        pages = paginator.paginate(Bucket=bucket_name, Prefix=prefix)

        files = []
        for page in pages:
            for obj in page.get('Contents', []):
                files.append({'key': obj['Key'], 'size': obj['Size']})
        logging.info(f"Found {len(files)} files in S3 bucket {bucket_name}, prefix: {prefix}.")
        return files
    except ClientError as e:
        logging.error(f"Error listing files: {e}")
        return []

## Split the manifest files into multiple parts so each worker will download the same amount of data ##
def split_manifests(files, num_manifests, bucket_name):
    logging.info(f"Splitting into {num_manifests} balanced manifests...")
    files.sort(key=lambda x: x['size'], reverse=True)
    manifests = [[] for _ in range(num_manifests)]
    manifest_sizes = [0] * num_manifests
    manifest_files_content = {}

    for file in files:
        idx = manifest_sizes.index(min(manifest_sizes))
        manifests[idx].append(file['key'])
        manifest_sizes[idx] += file['size']

    for i, manifest in enumerate(manifests):
        content = "\n".join(manifest) + "\n"
        filename = f"manifest-part-{i}.txt"
        manifest_files_content[filename] = content
        logging.info(f"{filename}: {len(manifest)} files, {manifest_sizes[i]} bytes")
    return manifest_files_content


## Create the rclone-master pod to copy the split manifest files to the shared disk ##
def create_master_pod_and_copy_manifests(manifest_files_content, bucket_name):
    logging.info(f"Creating rclone-master pod '{MASTER_POD_NAME}'...")
    master_pod_manifest = {
        "apiVersion": "v1",
        "kind": "Pod",
        "metadata": {
            "name": MASTER_POD_NAME
        },
        "spec": {
            "volumes": [
                {
                    "name": "myvolume",
                    "persistentVolumeClaim": {
                        "claimName": PVC_NAME,
                        "readOnly": False
                    }
                }
            ],
            "containers": [
                {
                    "name": "rclone-master",
                    "image": "busybox",
                    "command": ["/bin/sh", "-c", "while true; do sleep 3600; done"],
                    "volumeMounts": [
                        {
                            "mountPath": MANIFEST_DIR,
                            "name": "myvolume"
                        }
                    ]
                }
            ]
        }
    }

    subprocess.run([
        "kubectl", "apply", "-f", "-",
    ], input=json.dumps(master_pod_manifest).encode(), check=True)
    logging.info(f"rclone-master pod '{MASTER_POD_NAME}' created.")

    logging.info(f"Waiting for pod '{MASTER_POD_NAME}' to be running...")
    subprocess.run([
        "kubectl", "wait", "--for=condition=Ready", f"pod/{MASTER_POD_NAME}", "--timeout=600s"
    ], check=True)
    logging.info(f"Pod '{MASTER_POD_NAME}' is running.")

    logging.info(f"Copying manifest files to pod '{MASTER_POD_NAME}:{MANIFEST_DIR}'...")
    for filename, content in manifest_files_content.items():
        with open(filename, "w") as tmp_file:
            tmp_file.write(content)
        subprocess.run([
            "kubectl", "cp", filename, f"{MASTER_POD_NAME}:{MANIFEST_DIR}/{filename}"
        ], check=True)
        os.remove(filename)
        print(f"  Copied '{filename}' to '{MASTER_POD_NAME}:{MANIFEST_DIR}'")
    logging.info("Manifest files copied to the rclone-master pod.")


## Create rclone-workers equal to NUM_PODS variable and have the same shared disk mounted ##
## Each worker pod will get assigned the unique manifest we created previously ##
def launch_worker_pods(num_pods, bucket_name):
    logging.info(f"Launching {num_pods} rclone-worker pods...")
    for i in range(num_pods):
        pod_name = f"rclone-worker-{i}"
        manifest_file = f"/data/manifest-part-{i}.txt"
        rclone_command = [
            "sh", "-c",
            (
                "mkdir -p /root/.config/rclone && "
                "echo '[s3]\n"
                "type = s3\n"
                "provider = AWS\n"
                "env_auth = true'  /root/.config/rclone/rclone.conf && "
                f"rclone copy --files-from {manifest_file} s3:{bucket_name} /data "
                "--s3-chunk-size=64M --fast-list --buffer-size=32M --transfers=40 --multi-thread-streams=40 -P"
            )
        ]

        overrides = {
            "spec": {
                "hostNetwork": True,
                "nodeSelector": {
                    "crusoe.ai/instance.class": INSTANCE_CLASS
                },
                "containers": [
                    {
                        "name": "rclone-worker",
                        "image": "rclone/rclone",
                        "command": rclone_command,
                        "volumeMounts": [
                            {
                                "mountPath": "/data",
                                "name": "myvolume"
                            }
                        ],
                        "env": [
                            {
                                "name": "AWS_ACCESS_KEY_ID",
                                "valueFrom": {
                                    "secretKeyRef": {
                                        "name": SECRET_NAME,
                                        "key": "AWS_ACCESS_KEY_ID"
                                    }
                                }
                            },
                            {
                                "name": "AWS_SECRET_ACCESS_KEY",
                                "valueFrom": {
                                    "secretKeyRef": {
                                        "name": SECRET_NAME,
                                        "key": "AWS_SECRET_ACCESS_KEY"
                                    }
                                }
                            }
                        ]
                    }
                ],
                "volumes": [
                    {
                        "name": "myvolume",
                        "persistentVolumeClaim": {
                            "claimName": PVC_NAME,
                            "readOnly": False
                        }
                    }
                ]
            }
        }

        logging.info(f"Launching pod {pod_name} with manifest '{manifest_file}'...")
        subprocess.run([
            "kubectl", "run", pod_name,
            "--restart=Never",
            "--overrides", json.dumps(overrides),
            "--image=rclone/rclone",
            "--labels=app=rclone-worker"
        ], check=True)
    logging.info("All worker pods launched.")


## Wait for worker pods to complete download ##
def wait_for_pods_completion(label_selector="app=rclone-worker", poll_interval=15):
    logging.info("Waiting for rclone-worker pods to complete...")
    backoff = poll_interval
    while True:
        result = subprocess.run(
            ["kubectl", "get", "pods", "-l", label_selector, "-o", "json"],
            capture_output=True, text=True, check=True
        )
        pods = json.loads(result.stdout)["items"]
        incomplete = [p["metadata"]["name"] for p in pods if p["status"]["phase"] not in ("Succeeded", "Failed")]
        if not incomplete:
            logging.info("All pods have completed.")
            break
        logging.info(f"Still running: {incomplete}")
        time.sleep(backoff)
        backoff = min(backoff * 2, 10)  # exponential backoff, max 60s

## Cleanup the worker pods after test completes ##
def delete_pods(label_selector="app=rclone-worker"):
    logging.info("Deleting all rclone-worker pods...")
    subprocess.run(
        ["kubectl", "delete", "pod", "-l", label_selector],
        check=True
    )
## Delete master pod post test completion ##
def delete_master_pod():
    logging.info(f"Deleting rclone-master pod '{MASTER_POD_NAME}'...")
    try:
        subprocess.run(
            ["kubectl", "delete", "pod", MASTER_POD_NAME],
            check=True
        )
        logging.info(f"rclone-master pod '{MASTER_POD_NAME}' deleted.")
    except subprocess.CalledProcessError as e:
        if b"not found" in e.stderr:
            logging.info(f"rclone-master pod '{MASTER_POD_NAME}' not found.")
        else:
            raise

def main():
    create_k8s_secret()
    parts = S3_BUCKET.split('/')
    bucket_name = parts[0]
    prefix = '/'.join(parts[1:]) + '/' if len(parts)  1 else ''
    files = list_s3_files(bucket_name, prefix)
    manifest_files_content = split_manifests(files, NUM_PODS, prefix)
    create_master_pod_and_copy_manifests(manifest_files_content, bucket_name)
    time.sleep(5)
    launch_worker_pods(NUM_PODS, bucket_name)
    wait_for_pods_completion()
    delete_master_pod()
    delete_pods()


if __name__ == "__main__":
    main()

Run the script
```
python3 rclone-download.py
```

Additional Resources

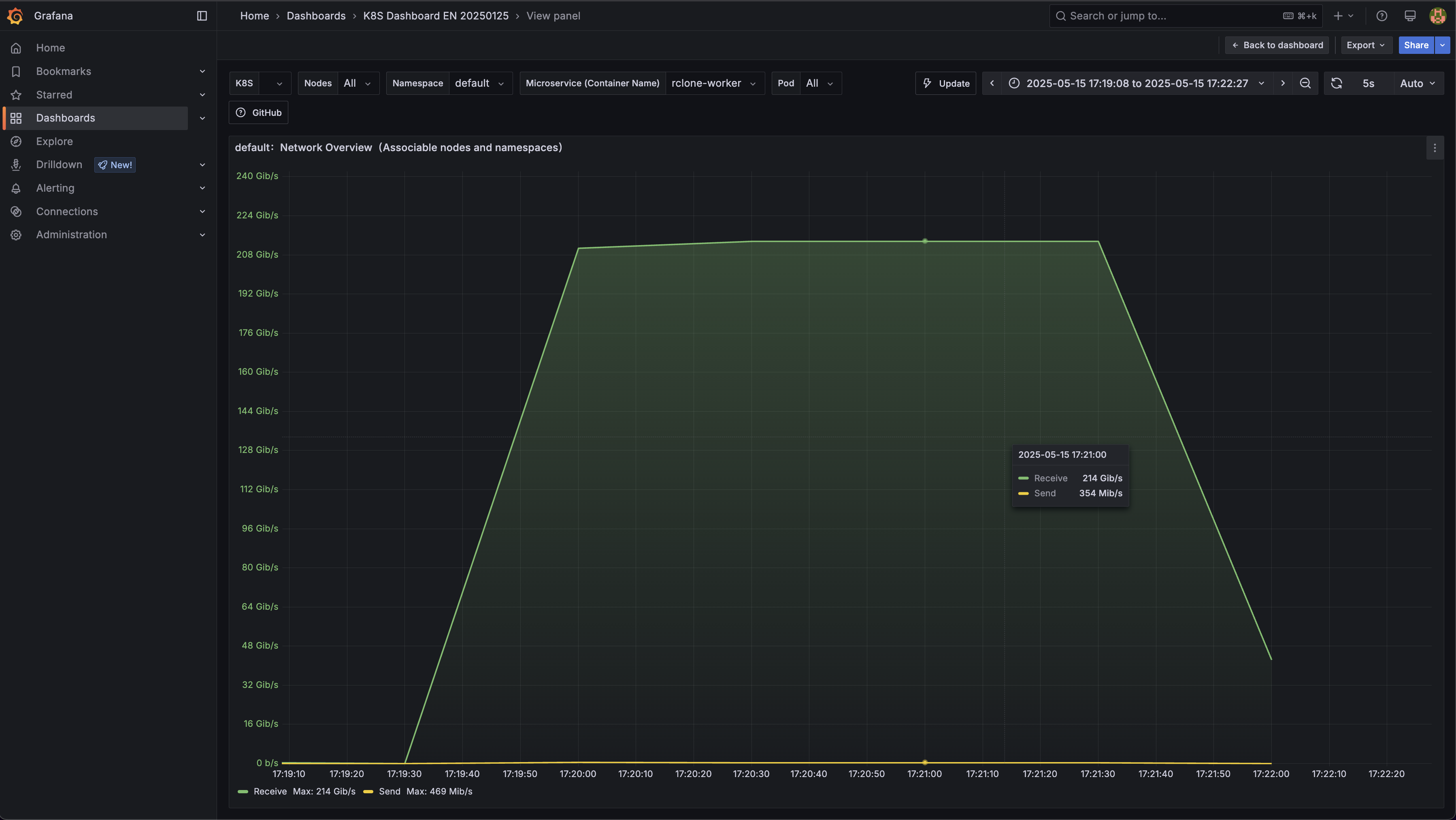

With 8 pods running in parallel and spread across 2 s1a.160x type nodes, we observed the following peak bandwidth number. This is cumulative bandwidth of all the rclone workers.

The output of the script should look like below:

# python3 rclone-download.py
2025-05-15 17:18:39,010 - INFO - Creating or updating Kubernetes secret 'aws-credentials'...
secret/aws-credentials configured
2025-05-15 17:18:40,200 - INFO - Kubernetes secret created or updated.
2025-05-15 17:18:40,201 - INFO - Listing files in S3 bucket crusoe-solutions-engineering, prefix: c4-dataset/en/...
2025-05-15 17:18:41,505 - INFO - Found 1032 files in S3 bucket crusoe-solutions-engineering, prefix: c4-dataset/en/.
2025-05-15 17:18:41,507 - INFO - Splitting into 8 balanced manifests...
2025-05-15 17:18:41,509 - INFO - manifest-part-0.txt: 129 files, 40888132483 bytes
2025-05-15 17:18:41,509 - INFO - manifest-part-1.txt: 129 files, 40888167248 bytes
2025-05-15 17:18:41,509 - INFO - manifest-part-2.txt: 129 files, 40888209571 bytes
2025-05-15 17:18:41,509 - INFO - manifest-part-3.txt: 129 files, 40887191536 bytes
2025-05-15 17:18:41,509 - INFO - manifest-part-4.txt: 129 files, 40888113404 bytes
2025-05-15 17:18:41,509 - INFO - manifest-part-5.txt: 129 files, 40888203247 bytes
2025-05-15 17:18:41,509 - INFO - manifest-part-6.txt: 129 files, 40888273042 bytes
2025-05-15 17:18:41,509 - INFO - manifest-part-7.txt: 129 files, 40888232487 bytes
2025-05-15 17:18:41,509 - INFO - Creating rclone-master pod 'rclone-master'...
pod/rclone-master created
2025-05-15 17:18:42,705 - INFO - rclone-master pod 'rclone-master' created.
2025-05-15 17:18:42,705 - INFO - Waiting for pod 'rclone-master' to be running...
pod/rclone-master condition met
2025-05-15 17:19:00,344 - INFO - Pod 'rclone-master' is running.
2025-05-15 17:19:00,344 - INFO - Copying manifest files to pod 'rclone-master:/manifests'...
Copied 'manifest-part-0.txt' to 'rclone-master:/manifests'
Copied 'manifest-part-1.txt' to 'rclone-master:/manifests'
Copied 'manifest-part-2.txt' to 'rclone-master:/manifests'
Copied 'manifest-part-3.txt' to 'rclone-master:/manifests'
Copied 'manifest-part-4.txt' to 'rclone-master:/manifests'
Copied 'manifest-part-5.txt' to 'rclone-master:/manifests'
Copied 'manifest-part-6.txt' to 'rclone-master:/manifests'
Copied 'manifest-part-7.txt' to 'rclone-master:/manifests'
2025-05-15 17:19:17,450 - INFO - Manifest files copied to the rclone-master pod.
2025-05-15 17:19:22,456 - INFO - Launching 8 rclone-worker pods...
2025-05-15 17:19:22,456 - INFO - Launching pod rclone-worker-0 with manifest '/data/manifest-part-0.txt'...
pod/rclone-worker-0 created
2025-05-15 17:19:23,064 - INFO - Launching pod rclone-worker-1 with manifest '/data/manifest-part-1.txt'...
pod/rclone-worker-1 created
2025-05-15 17:19:23,702 - INFO - Launching pod rclone-worker-2 with manifest '/data/manifest-part-2.txt'...
pod/rclone-worker-2 created
2025-05-15 17:19:24,317 - INFO - Launching pod rclone-worker-3 with manifest '/data/manifest-part-3.txt'...
pod/rclone-worker-3 created
2025-05-15 17:19:24,986 - INFO - Launching pod rclone-worker-4 with manifest '/data/manifest-part-4.txt'...
pod/rclone-worker-4 created
2025-05-15 17:19:25,611 - INFO - Launching pod rclone-worker-5 with manifest '/data/manifest-part-5.txt'...
pod/rclone-worker-5 created
2025-05-15 17:19:26,276 - INFO - Launching pod rclone-worker-6 with manifest '/data/manifest-part-6.txt'...
pod/rclone-worker-6 created
2025-05-15 17:19:26,867 - INFO - Launching pod rclone-worker-7 with manifest '/data/manifest-part-7.txt'...
pod/rclone-worker-7 created
2025-05-15 17:19:27,497 - INFO - All worker pods launched.
2025-05-15 17:19:27,498 - INFO - Waiting for rclone-worker pods to complete...
2025-05-15 17:19:28,343 - INFO - Still running: ['rclone-worker-0', 'rclone-worker-1', 'rclone-worker-2', 'rclone-worker-3', 'rclone-worker-4', 'rclone-worker-5', 'rclone-worker-6', 'rclone-worker-7']
2025-05-15 17:19:44,233 - INFO - Still running: ['rclone-worker-0', 'rclone-worker-1', 'rclone-worker-2', 'rclone-worker-3', 'rclone-worker-4', 'rclone-worker-5', 'rclone-worker-6', 'rclone-worker-7']
2025-05-15 17:19:55,204 - INFO - Still running: ['rclone-worker-0', 'rclone-worker-1', 'rclone-worker-2', 'rclone-worker-3', 'rclone-worker-4', 'rclone-worker-5', 'rclone-worker-6', 'rclone-worker-7']
2025-05-15 17:20:06,117 - INFO - Still running: ['rclone-worker-1', 'rclone-worker-2', 'rclone-worker-3', 'rclone-worker-4', 'rclone-worker-5', 'rclone-worker-6', 'rclone-worker-7']
2025-05-15 17:20:17,078 - INFO - Still running: ['rclone-worker-2', 'rclone-worker-3', 'rclone-worker-4', 'rclone-worker-5', 'rclone-worker-6', 'rclone-worker-7']
2025-05-15 17:20:28,469 - INFO - Still running: ['rclone-worker-3']
2025-05-15 17:20:39,439 - INFO - All pods have completed.
2025-05-15 17:20:39,440 - INFO - Deleting rclone-master pod 'rclone-master'...
pod "rclone-master" deleted
2025-05-15 17:21:10,647 - INFO - rclone-master pod 'rclone-master' deleted.
2025-05-15 17:21:10,647 - INFO - Deleting all rclone-worker pods...
pod "rclone-worker-0" deleted
pod "rclone-worker-1" deleted
pod "rclone-worker-2" deleted
pod "rclone-worker-3" deleted
pod "rclone-worker-4" deleted
pod "rclone-worker-5" deleted
pod "rclone-worker-6" deleted
pod "rclone-worker-7" deleted

Related to

how-to rclone aws s3 download

Introduction

Prerequisites

Summary

Step-by-Step Instructions

Additional Resources

Related to

Was this article helpful?

Still need help?

Related Articles

Recently Viewed

Comments

How-To Download Data From AWS S3 Using Rclone Parallel Streams

Introduction

Prerequisites

Summary

Step-by-Step Instructions

Additional Resources

Related to

Was this article helpful?

Still need help?

Related Articles

Related articles

Recently Viewed

Comments
